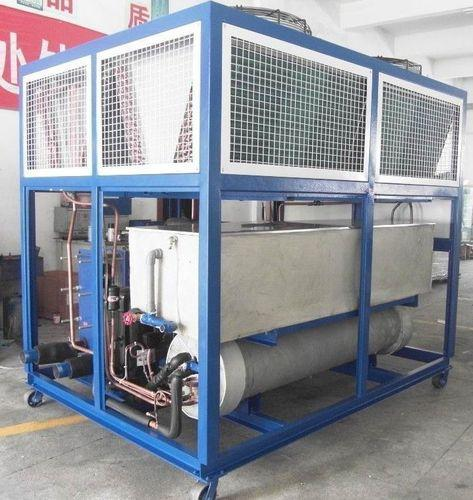

Industrial Chillers (Air Cooled & Water Cooled)
The industrial chillers we offer are built in closed stainless steel
tanks. The rigid steel frame construction has a power coating finish and
hence is weather resistant. It is designed to maximise exchanger
efficiency. The heat exchanger is of coaxial type and uses copper tubes
in a coiled tube in tube arrangement. This arrangement maximizes heat
transfer rate with minimum pressure drop. To further increase heat
transfer efficiency, a counter flow pattern is used that achieves
maximum temperature difference.

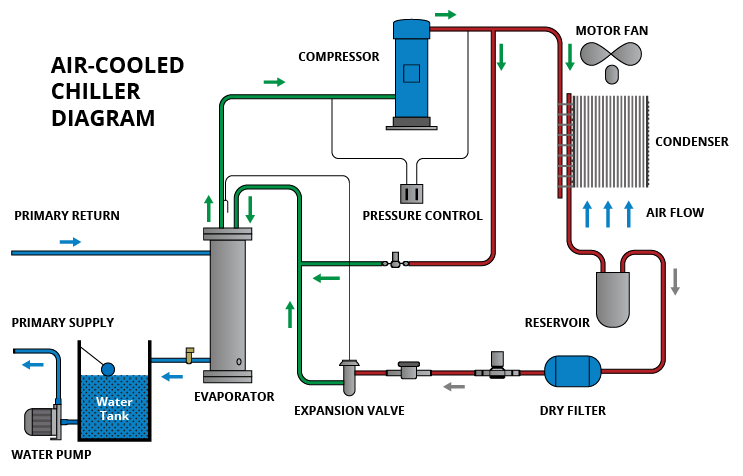

Air cooled chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit. This type of chiller system is generally used in applications where the additional heat it discharges is not a factor.
SALIENT FEATURES:
- Compact - occupies minimum space
- Built in closed stainless steel tank
- Stainless steel high pressure pump for reliable operation
- Microprocessor control (Optional)
- Reduced Maintenance >> More heat transfer area
- Temperatures -5o to +30oC
- Capacity: 0.75 to 100 TR

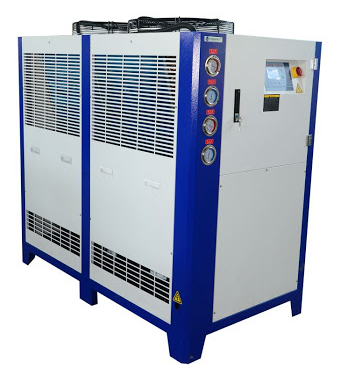

Industrial Air Cooled Chillers
Air cooled chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit. This type of chiller system is generally used in applications where the additional heat it discharges is not a factor.
